Associate Prof. Yukikazu Takeoka and his research group at the Graduate School of Engineering, Nagoya University invented extremely stretchable, highly tough and strong hydrogels using novel, freely movable polyrotaxane cross-linkers. In addition, the response speed of the stimuli-sensitive hydrogels prepared using the cross-linkers is dramatically enhanced when compared with that of conventional polymer gels.
Conventional polymer gels typically exhibit slow responses and are mechanically brittle. Consequently, it has been difficult to apply them in practical applications using changes in volume and surface area that occur in conventional polymer gels. With their improved properties, the new stimuli-sensitive hydrogels should be suitable for various practical applications, including artificial muscles, drug delivery systems, sensors, and culture beds for regenerative medicine.
This research was published in the international academic journal "Nature Communications (electronic version)" in the United Kingdom on October 8, 2014. → Link to Nagoya University Press Release

Soft contact lenses, diapers, photo films, gummies, tofu, etc.

All of these things are made of "gels", and they all are part of our daily lives.

"There are many gel-like foods in the East Asia."

As food is viewed as the symbiosis of culture and science, not surprisingly, Japan is a world leader in gel research. Associate Prof. Yukikazu Takeoka and his research group at the Graduate School of Engineering, Nagoya University are recognized as top researchers in the field of polymer gels.

Polymer gels are cross-linked polymer chains that form a three-dimensional network structure. These gels swell when immersed into a solvent due to absorption and retention of the solvent in the gaps within the network (Figure 1). Because of their unique properties, polymer gels can function as molecular sieves and absorbers for liquid and even vibrations. They are also very easy to prepare and consequently have found practical use in multiple fields.

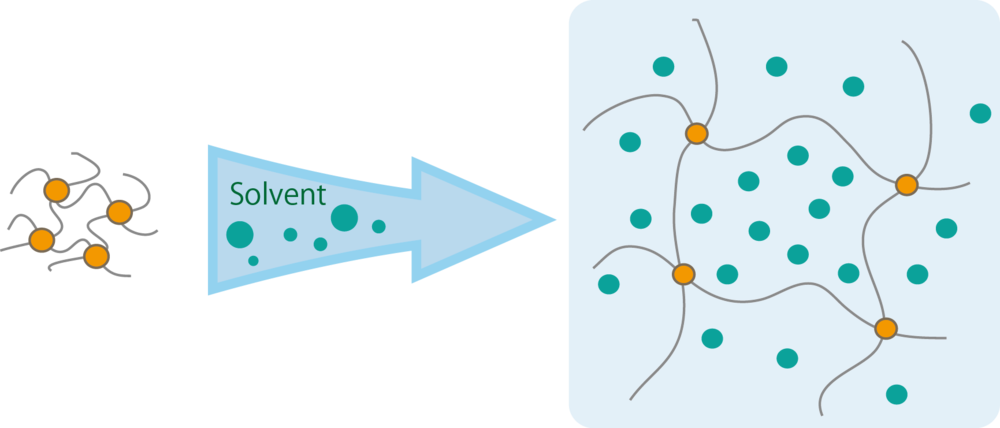

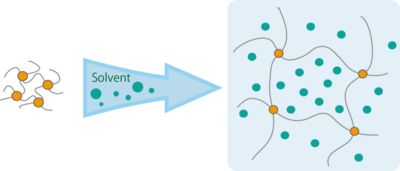

Figure 1. The schematic diagram of the network structure of gel, swelling when immersed into a solvent.

However, even though polymer gels have great potential, they can suffer from brittleness. Until this "fragility" can be overcome, their use in more advanced applications, such as artificial muscles, drug delivery systems, sensors, and culture beds for regenerative medicine, will remain very limited.

Associate Prof. Takeoka and Project Assistant Prof. Abu Bin Imran took the first step toward the practical use of polymer gels with the preparation of newly developed cross-linking points that move freely, resulting in hydrogels with high stimuli-sensitive characteristics (extensibility and tenacity). Importantly, the preparation of these advanced gels involves a simple process similar to the one used for the synthesis of conventional polymer gels.

＊＊＊＊＊＊＊

"I was originally studying biomaterials."

In his student days, Associate Prof. Takeoka was committed to the development of polymer gels for use in drug delivery systems in the field of medical engineering. By using a gel that "releases medicine only when it is heated," the delivery of a drug substance on the surface of the gel could be controlled, resulting in its release only in the areas where the drug is needed, thereby suppressing any side effects.

Therefore, to control the drug distribution in the body, polymer gels that are stimuli-sensitive and flexible are required.

To date, researchers have developed polymer gels based on exfoliated clay as cross-linkers, and also gels consisting of double network, primary networks of hard polymers and soft secondary networks. However, in the former case, because the cross-linking sites that establish the networks are connected by hydrogen bonds, these gels gradually dissolve in water. In the latter case, the gels often degrade after repeated use. Thus, even after approximately 30 years of research, there are few examples for the practical application of stimuli-sensitive hydrogels.

"I was asked to study this problem because I had been successful at introducing light responsive functionality to gels."

Associate Prof. Takeoka also has an interest in the structural color of materials or the color resulting from the physical construction of a substance. Applying this interest to polymer gels, he was able to develop sensors based on gels that change color due to the change in the volume of the gel (Bragg reflection) in response to various environmental stimuli. With expertise in both soft materials and structural color, Associate Prof. Takeoka began working with Prof. Takahiro Seki at the Graduate School of Engineering at Nagoya University and conducting joint research with Prof. Kohzo Ito at the Graduate School of Frontier Sciences, The University of Tokyo.

Prof. Ito and his research group invented polymer gels with freely movable cross-linking points (Okumura and Ito, Adv. Mater. (2001) 13: 485-7) and advanced the field of soft and strong polymer materials. This technology was patented and Advanced Softmaterials Inc. (http://www.asmi.jp/en/) was founded. The company offers a slide ring material (Figure. 2) that exhibits a pulley effect.

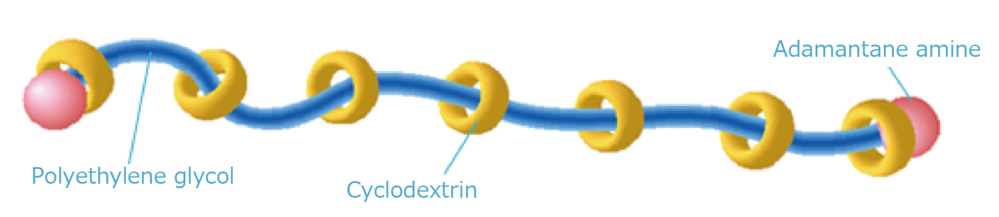

Figure 2. A slide ring material. (Figure: by courtesy of Advanced Softmatrials Inc.)

The slide ring material is a three-dimensional polymer network with a polyrotaxane (PR) structure (Harada et al. Nature (1992) 356: 325-7) consisting of three molecular (supramolecular) complexes, a linear polymer polyethylene glycol (PEG), the cyclic molecule cyclodextrin (CD), and adamantane amine, a stopper molecule that ends the polymer chain. Under certain conditions, the pulley effect, in which the CD can move freely on the PEG, can be expected.

"Using this PR as a cross-linker, we believed that stimuli-sensitive hydrogels could be prepared by installing the pulley effect in the polymer network."

Associate Prof. Takeoka and Project Assistant Prof. Imran thus began developing stimuli-sensitive hydrogels with flexible mechanical properties using a PR slide ring material.

Project Assistant Prof. Imran first modified the hydrophilic PR, HPR with reactive vinyl groups in order to synthesize a cross-linker (HPR-C) (Figure 3). He then prepared a mixed solution of this cross-linker and N-isopropylacrylamide (NIPA), a known thermosensitive monomer, in water. Ammonium persulfate (APS) was used as the initiator of the gelation reaction, and tetramethylethylenediamine (TEMED) served as a reaction accelerator.

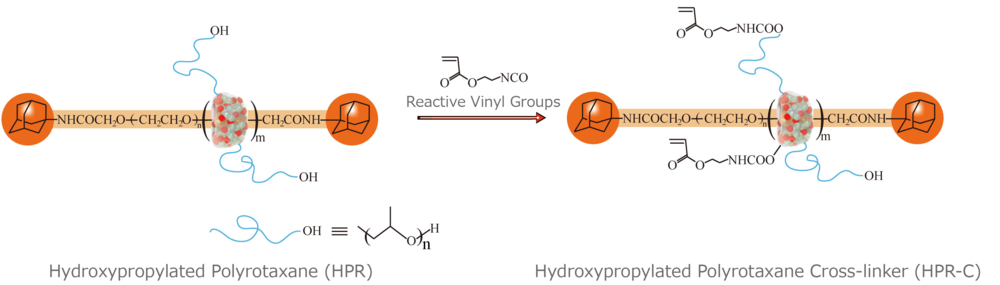

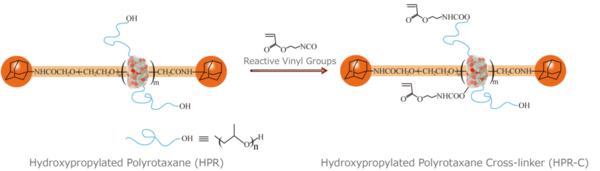

Figure 3. A synthesis of a cross-linker, HPR-C. (Figure was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

However, the resultant NIPA-HPR-C hydrogel, despite the use of a PR cross-linker, was still "fragile", and the pulley effect was not observed.

"I was disappointed but had no intention to give up."

Project Assistant Prof. Imran next attempted to examine the volume changes of hydrogels with the movable cross-linking points in response to changes in the environment. In stimuli-sensitive gels, when a change in the surrounding environment occurs, such as a change in the temperature or solvent composition, the polymer chains constituting the network shrink or expand accordingly, resulting in a change in the volume of the polymer gel. In general, when exposed to materials with ionic groups, such gels absorb the solvent and become swollen.

To study the effect of an ionic material on the NIPA-HPR-C hydrogel, Project Assistant Prof. Imran added a small amount of sodium acrylate (AAcNa) to the gel (Figure. 4).

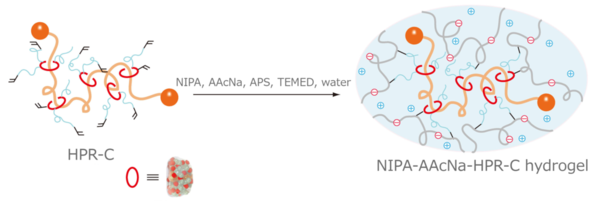

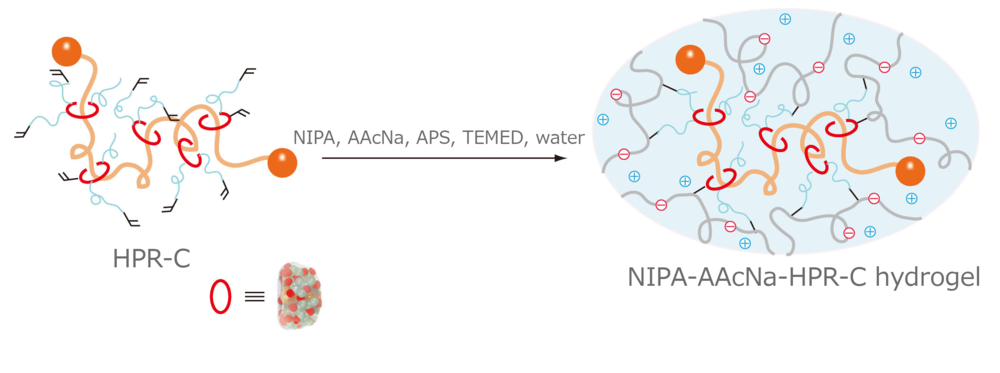

Figure 4. A synthesis of hydrogel by using HPR-C. (Figure was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

The resultant hydrogel was very flexible and could expand to well over 10 times the size possible for conventional polymer gels. In addition, it was not easy to cut, even using a sharp cutter (Figure. 5).

Figure 5. The resultant hydrogel in response to various environmental stimuli (extending, pressing, twisting, knotting, and cutting by a sharp cutter). (Figure was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

By introducing ionic groups into the polymer network, the entire polymer network exhibited an increased ability to generate osmotic pressure due to the interactions of the ions in the ionic group with the polymer network inside the hydrogel. In addition, it is believed that the cross-linking sites were freely movable because the HPR-C used as the cross-linker became significantly extended in the mesh of the network (Figure.6).

Figure 6. The swallen hydrogel. (Figure was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

Furthermore, Project Assistant Prof. Imran proposed that insertion of the ionic groups directly into the PR, rather than extending to the stimulus responsive portions of the polymer network, would be sufficient for achieving similar behavior. As a result, without changing the stimuli-sensitive properties of the polymer, it could be possible to exert the pulley effect in the hydrogel.

First, he prepared an ionic PR and then as before synthesized a cross-linker modified with vinyl groups (iPR-C) (Figure. 7).

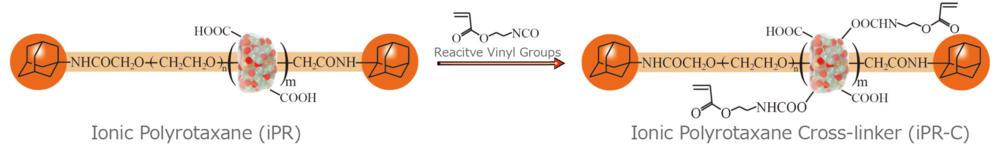

Figure 7. A synthesis of an ionic coss-linker, iPR-C. (Figure was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

Second, he produced a hydrogel using only NIPA and the iPR-C (NIPA-iPR-C) without using AAcNa. Because the charge in the polymer gel was concentrated only around the cross-linker (Figure. 8), the pulley effect was successfully applied to the hydrogel without affecting the stimuli-sensitive properties of the polymer.

Figure 8. The state of charge in the hydrogel produced by NIPA and iPR-C. (Figure was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

You can see here in the movie the "stimuli-sensitive" hydrogel ―you may doubt it is a gel, or rather a rubber:

A Hydrogel NOT exhibiting the pully effect (Movie was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

A Hydrogel using a movable cross-linker, HPR-C (Movie was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

A Hydrogel using a movable cross-linker, iPR-C (Movie was cited from : Abu Bin Imran et al. Nature Communications (2014) 5: 5124 Copyright © 2014, Rights Managed by Nature Publishing Group.)

＊＊＊＊＊＊＊

"It could be manufactured even by a young child."

One of the important features of this new hydrogel technology is that the polymer gels can be produced using a simple process that can be performed by anyone.

The development of stimuli-sensitive hydrogels that undergo changes in volume more rapidly and by a greater percentage than conventional polymer gels in response to a change in the surrounding environmental or certain types of stimulation should lead to expanded applications for these advanced materials.

Entirely new "stimuli-sensitive" hydrogels are now ready for use in a wide variety of applications

―as a result of this inspired advancement in science and technology.

(Ayako Umemura)
